New World ERP Open Finance (Data & Insights) Installation
Initial Setup (Typically done by Tyler staff):
- Project Manager needs to request Data & Insights Domain. Estimated SLA on the return of this information is 3-4 days per Data & Insights. The user used here should be generic and
- New World ERP DSS is required and must be running version 2019.1 or higher. This version of DSS is compatible with 2018.1 New World ERP.
- Data & Insights Open Finance project needs to be tied to the customer in Tyler Deploy. This should happen at contract signing time. The Data & Insights role is assigned to the application server tentacle in Tyler Deploy.
- HTTPS access from the server with the connector to *.socrata.com.
- Powershell 5.1 and .Net Framework 4.6.2 on the DSS server.
- Access to the sites listed in Appendix A of this document on the DSS server.
Install Steps:
- Log into Tyler Deploy and load up the Data & Insights Open Finance New World ERP project for the customer and the environment type you want. For Data & Insights, this is typically Prod.
-

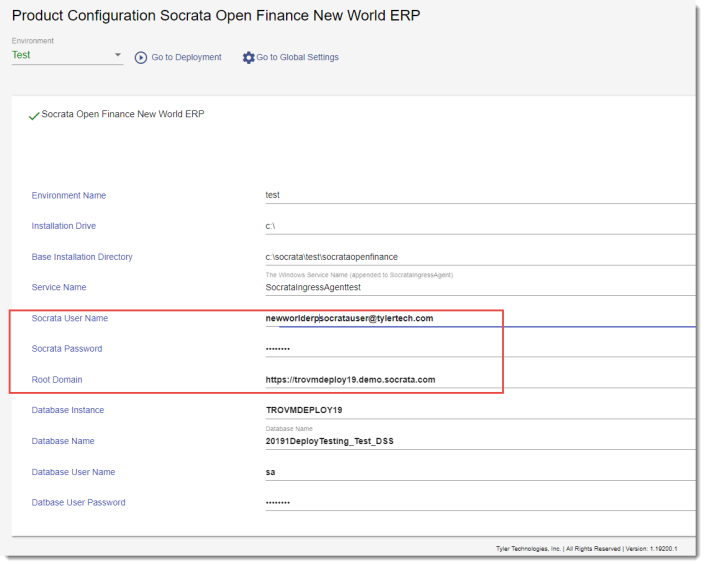

Fill out the values based on the tooltips and field descriptions. The area in red should be provided by the project manager based on their ticket with Data & Insights Support.
Note: A service will install on the server based on the name put into the Service Name parameter. This defaults to SocrataIngressAgent{EnvironmentName}.
Post-Install Check:
Go to https://{customer domain}/admin/gateway (Domain that was entered into Tyler Deploy), and the newly deployed connector should show up there as connected and have 6 plugins (one for each integration plus the automation one for Open Expenditures). Implementation should be able to handle after this step.

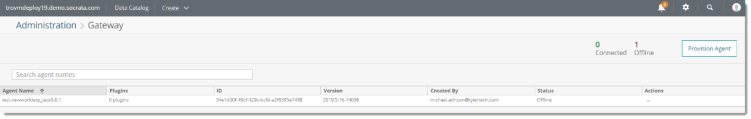

The example below shows a dev environment where additional manual configuration would be needed. In a customer environment, you should see 6 plugins here in the Plugins column:
Example with 6 plugins as desired:
Appendix A
Tyler Deploy runs from a node-based AWS site to provide better connectivity. As such, the following ports and IP addresses need to be open on the appropriate servers:
| IP: | 23.22.239.32 |
| 18.214.7.128 |
DNS
https://tylerdeployer.tylerdeploy.com:443
https://tylerdeployer2.tylerdeploy.com:443
https://tylerdeployer3.tylerdeploy.com:443
https://tylerdeployer4.tylerdeploy.com:443
https://tylerdeployer.tylerdeploy.com:10943
https://tylerdeployer2.tylerdeploy.com:10944
https://tylerdeployer3.tylerdeploy.com:10945
https://tylerdeployer4.tylerdeploy.com:10946
https://tylerdeployer5.tylerdeploy.com:10947
https://tylerdeployer6.tylerdeploy.com:10948
