Federal Tax Step Import

Maintenance > Human Resources > Deductions and Benefits > Federal Tax Step Import

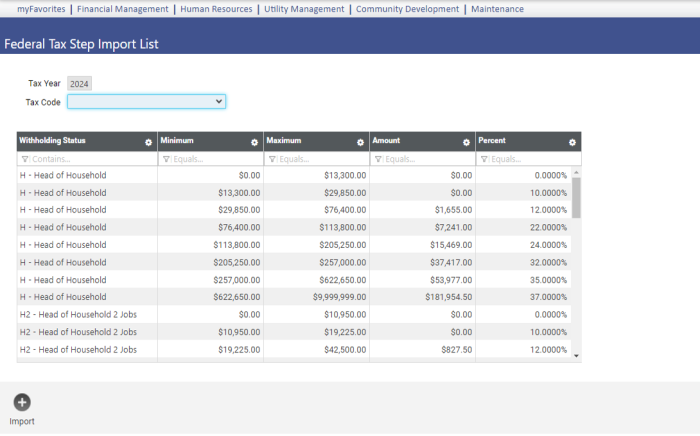

Eliminating the need to update your federal tax steps table manually, the Federal Tax Step Import has been added to the Deductions and Benefits Maintenance menu:

On this page, the New World ERP development team has built the federal tax steps table for the current tax year. When the IRS publishes the tax steps for the next year, the development team will update this page accordingly.

For the Federal Tax Step Import to display on a user's menu, follow the steps below:

  1. Navigate to Maintenance > new world ERP Suite > Security > Users. The User List displays.
  2. Use the filter in the User Name column to search for the user.
  3. Select the user's row.
  4. Click Permissions. The User Permissions page displays, containing a table of security components and a filter panel.

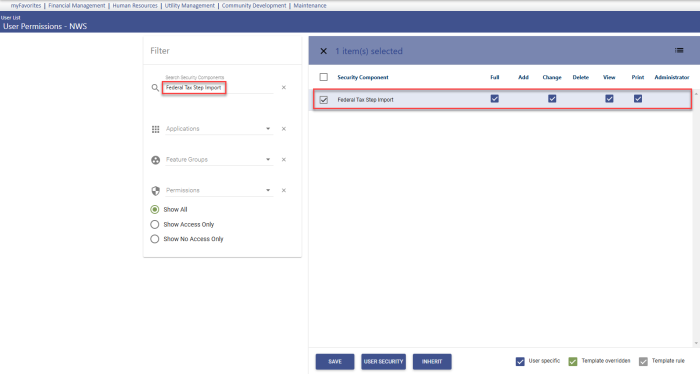

  5. In the Search Security Components filter, type Federal Tax Step Import. The table refreshes to display the Federal Tax Step Import security component:

  6. Select the appropriate permissions.
  7. Click Save.
  8. For the permissions to take effect, the user must log off and log back onto the system.

The federal tax steps on the import page are based on six standard withholding tables defined by alternate values in the Withholding Status validation set. They are the same alternate values used for the W-4 update from eSuite.

If alternate values have not been set up already, follow the steps below, making entries exactly as shown:

  1. Navigate to Maintenance > new world ERP Suite > System > Validation Sets > Validation Set List.
  2. Select the row containing Set Number 11, Withholding Status.
  3. Click the Values button. The Validation Set Values List page opens.
  4. Select the row containing a federal withholding status.
  5. Click the Alternates button. The Alternate Value List page opens.
  6. Click the New button. The Alternate Value dialog opens.

  7. Select the Usage Type, NWS Quick Value.

  8. In the Value field, type an M.
  9. In the Description field, type Married.
  10. Click OK.

  11. Repeat steps 4-10 for the following withholding statuses, using the same Usage Type of NWS Quick Value:

    Alternate Value Description (Status)
    M Married
    S Single
    H Head of Household
    M2 Married 2 Jobs
    S2 Single 2 Jobs
    H2 HOH 2 Jobs
  1. Navigate to Maintenance > Human Resources > Deductions and Benefits > Taxes.

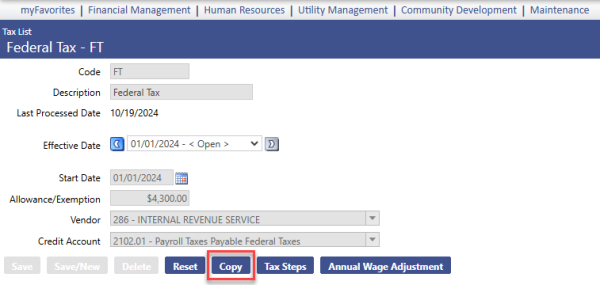

  2. Click the Code of the federal tax you are updating. A page like the following displays:

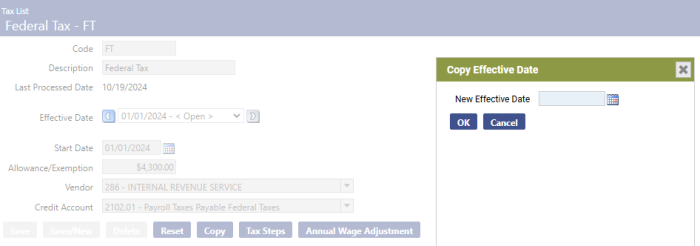

  1. Click Copy to create a new Effective Date that is later than the Last Processed Date. The Copy Effective Date dialog displays:

  1. Select the New Effective Date.
  2. Click OK.
  3. If necessary, update the amount in the Allowance/Exemption field.

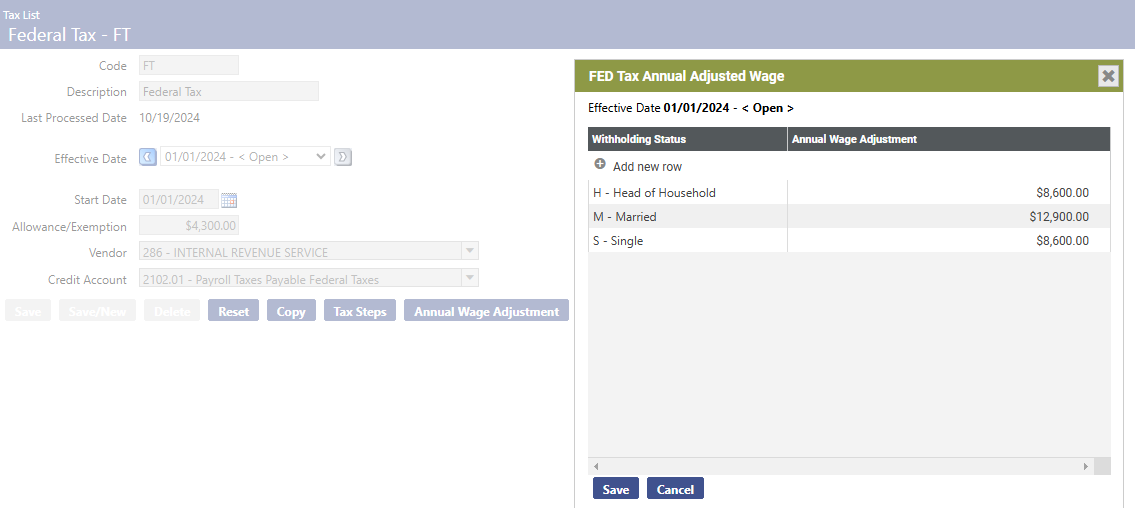

  4. Click Annual Wage Adjustment to update the annual adjusted wage, if necessary:

Once you have performed the necessary setup, return to the Federal Tax Step Import page, select the federal Tax Code to update, and click Import.

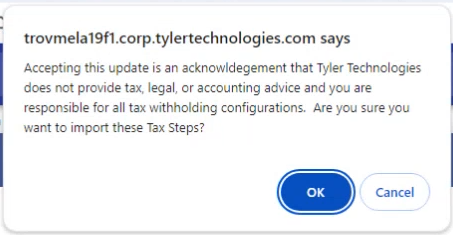

The following message displays, asking you to confirm whether you want to import the tax steps:

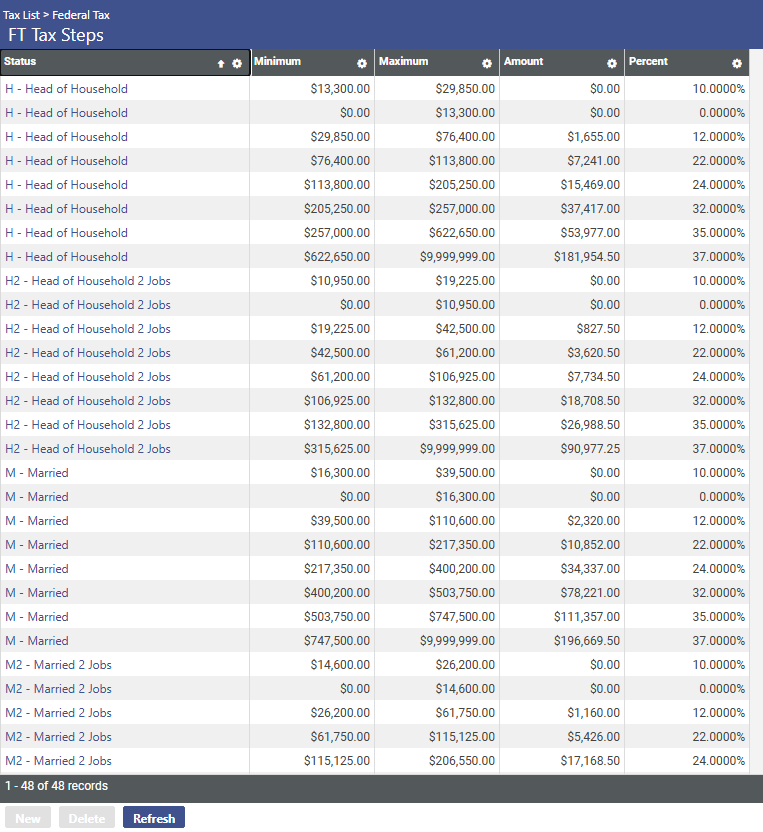

When you click OK, the tax steps are imported to the federal tax steps page for the tax code selected (Maintenance > Human Resources > Deductions and Benefits > Taxes > Code > Tax Steps):

Before the imported steps are used in a payroll, you may edit the table as necessary; however, if you run the import again, the imported table overrides the existing table.
